    F Flanged Compressed Air Filters

    f-flanged-compressed-air-filters

     Advantages

    • Simple design to replacement to internal element

    • Two external float drains for excellent drainage

    • CE and ASME tank options

    • Low pressure drop

    • Durable epoxy powder coating and rust-preventing anodised interior surface coating

    • Strong welds

    • Long service life

    They filter unwanted substances in the compressed air before they go to the system.

    TECHNICAL  SPECIFICATIONS


    Model Capacity Connection
    Size    		 Drain
    Port Size    		 Maximum
    Working
    Pressure    		 Element Model Number of

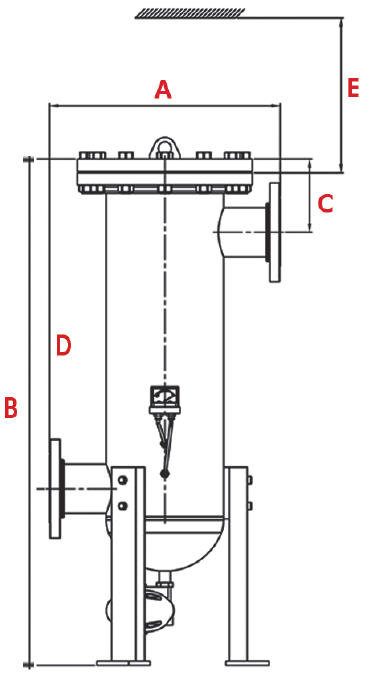

    Elements    		 Housing Dimensions (mm)
    m³/min cfm bar A B C D E
    F 3600 60 2119 DN100 G ½” 14 M1200 3 450 1317 277 767 650
    F 4800 80 2825 DN100 G ½” 14 M1200 4 530 1344 279 769 650
    F 7200 120 4238 DN150 G ½” 14 M1200 6 580 1425 331 769 650
    F 9600 160 5650 DN150 G ½” 14 M1200 8 650 1439 333 798 650
    F 12000 200 7063 DN200 G ½” 14 M1200 10 750 1504 345 825 650
    F 16800 280 9888 DN200 G ½” 14 M1200 14 800 1545 383 833 650
    F 19200 320 11301 DN250 G ½” 14 M1200 16 850 1583 417 862 650
    F 20400 340 12007 DN300 G ½” 14 M1200 17 850 1680 447 887 650
    F 27600 460 16245 DN350 G ½” 14 M1200 23 850 1778 487 917 650
    F 33600 560 19776 DN350 G ½” 14 M1200 28 850 1778 487 917 650
