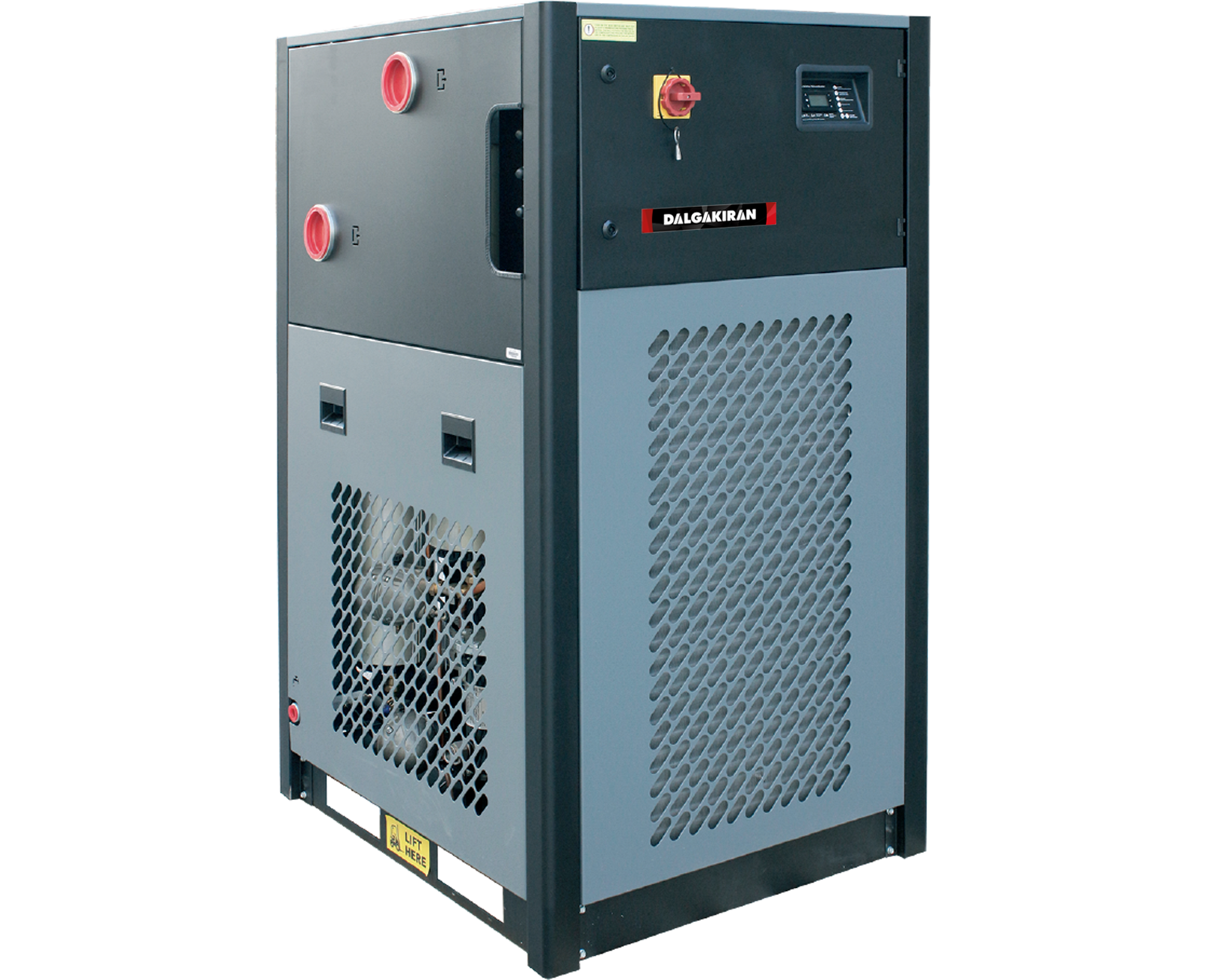

DRYAIR DK Refrigerated Type Compressed Air Dryers

Key Features

• Very low pressure losses

• Design suitable for tropical climates

• R-134a Refrigerant

• Operates at 60°C inlet temperature and 50°C ambient temperature

• Compact design

• Minimum footprint

• Digital controller for energy savings

• High efficiency

• Ease of access

• Separate electrical and cooling sections

What is a refrigerated air dryer?

They cool the compressed air passing through them and keep that air dry down to the dew point of +3°C.

Inlet and outlet filters integrated into the dryer (up to the Dryair DK 210 model) reduce the particle level by 0.01 microns and the oil particle level by 0.01 mg/m³.

TECHNICAL SPECIFICATIONS

Model	Capacity		Connection Size	Voltage**	Refrigerant	Max. Operating Pressure	Maximum Ambient Temperature	Maximum Inlet Temperature	Filter	Dimensions (mm)			Weight
Model	m³/min	cfm	Connection Size	Voltage**	Refrigerant	bar	°C	°C	Filter	Length	Width	Height	kg
Dryair DK 10	0,35	12	G ½”	230V/1/50 Hz	R-134a	16	50	60	Included	423	393	567	32
Dryair DK 20	0,58	20	G ½”	230V/1/50 Hz	R-134a	16	50	60	Included	423	393	567	32
Dryair DK 30	0,83	29	G ½”	230V/1/50 Hz	R-134a	16	50	60	Included	423	393	567	32
Dryair DK 35	1,05	37	G ½”	230V/1/50 Hz	R-134a	16	50	60	Included	423	393	567	35
Dryair DK 40	1,45	51	G ¾”	230V/1/50 Hz	R-134a	16	50	60	Included	473	453	832	51
Dryair DK 50	2,17	77	G ¾”	230V/1/50 Hz	R-134a	16	50	60	Included	473	453	832	53
Dryair DK 60	2,83	100	G ¾”	230V/1/50 Hz	R-134a	16	50	60	Included	473	453	832	55
Dryair DK 70	3,3	117	G 1 ½”	230V/1/50 Hz	R-134a	16	50	60	Included	553	503	874	78
Dryair DK 80	4,7	166	G 1 ½”	230V/1/50 Hz	R-134a	16	50	60	Included	553	503	874	83
Dryair DK 90	5,9	208	G 1 ½”	230V/1/50 Hz	R-134a	16	50	60	Included	553	503	874	86
Dryair DK 100	7,8	275	G 2”	230V/1/50 Hz	R-134a	16	50	60	Included	678	648	1157	160
Dryair DK 110	9,8	346	G 2”	230V/1/50 Hz	R-134a	16	50	60	Included	678	648	1157	165
Dryair DK 120	13,8	487	G 2”	230V/1/50 Hz	R-134a	16	50	60	Included	948	728	1370	220
Dryair DK 130	18,3	646	G 2”	230V/1/50 Hz	R-134a	16	50	60	Included	948	728	1370	230
Dryair DK 140	21,8	770	G 3”	400V/3/50Hz	R-134a	16	50	60	Included	948	798	1460	270
Dryair DK 150	27,1	957	G 3”	400V/3/50Hz	R-134a	16	50	60	Included	948	798	1460	285
Dryair DK 160	36,7	1296	G 3”	400V/3/50Hz	R-134a	16	50	60	Included	1163	778	1725	392
Dryair DK 170	43,7	1543	G 3”	400V/3/50Hz	R-134a	16	50	60	Included	1163	778	1725	410
Dryair DK 180	52,4	1850	DN100	400V/3/50Hz	R-134a	16	50	60	Included	1397	847	1770	492
Dryair DK 190	61,6	2175	DN100	400V/3/50Hz	R-134a	16	50	60	Included	1397	847	1770	520
Dryair DK 200	80	2825	DN100	400V/3/50Hz	R-134a	16	50	60	Included	1467	1077	1930	696
Dryair DK 210	92	3249	DN100	400V/3/50Hz	R-134a	16	50	60	Included	1467	1077	1930	718
Dryair DK 220	109,7	3874	DN150	400V/3/50Hz	R-134a	16	50	60	-	2188	1062	1925	900
Dryair DK 230	123,9	4375	DN150	400V/3/50Hz	R-134a	16	50	60	-	2188	1062	1925	925
Dryair DK 240	141,6	5001	DN150	400V/3/50Hz	R-134a	16	50	60	-	2247	1200	2044	975
Dryair DK 250	165,2	5834	DN200	400V/3/50Hz	R-134a	16	50	60	-	2247	1200	2044	1100
Dryair DK 260	196,7	6946	DN200	400V/3/50Hz	R-134a	16	50	60	-	2550	1550	2100	1400

- DALGAKIRAN reserves its rights to change the specifications without any prior notice.
* Capacity is given at atmospheric Pressure at 20 °C (ISO 1217) in accordance with norms ISO 7183-8573-1 and Pneurop 6611- Class 4-7 bar -35 °C inlet - 25 °C ambient.
** Consult sales representative for optional voltages
