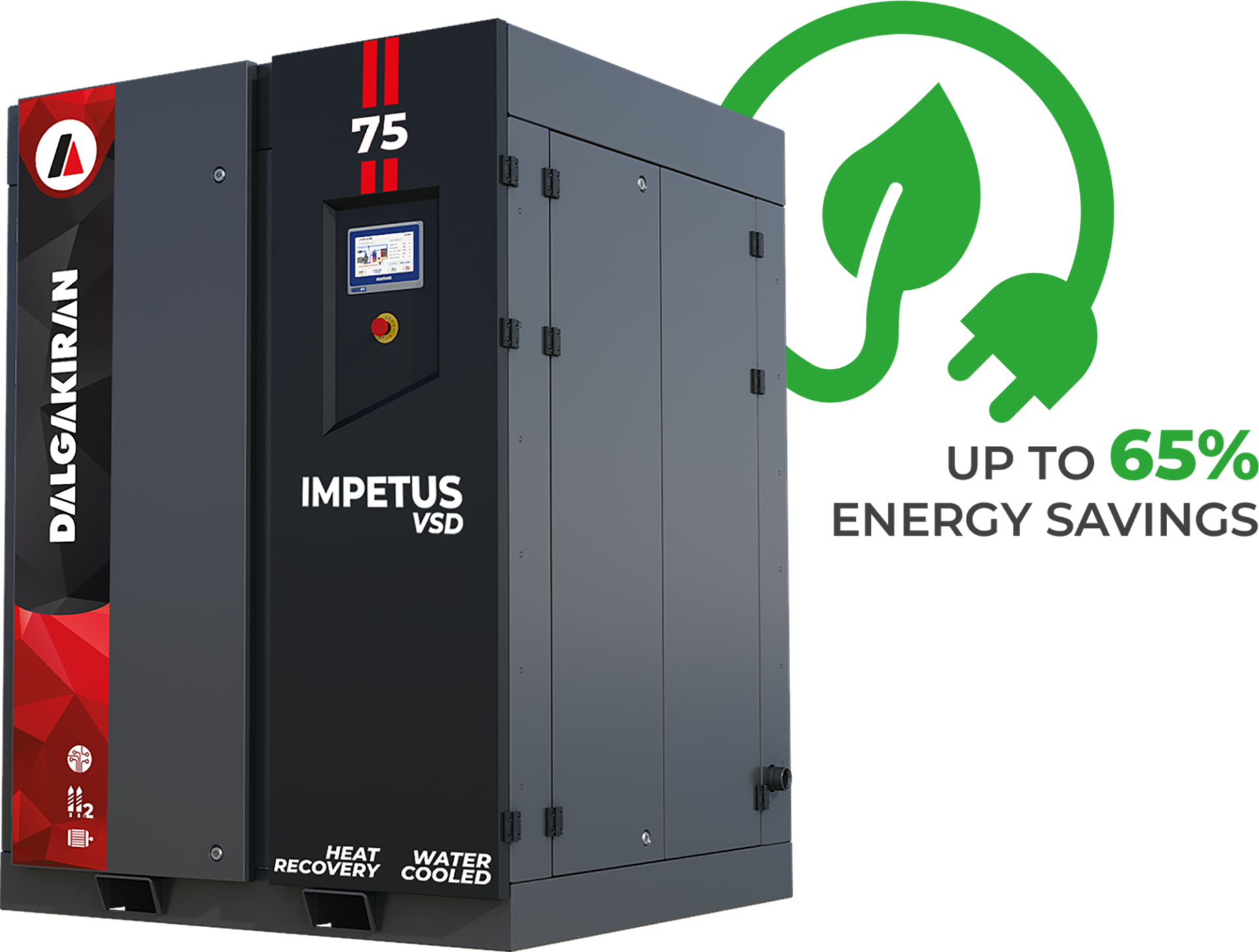

IMPETUS 22-75 kW

22-75 kW 7,5-8,5-10 bar 1,03-16 m³/min

Oil Injected, Two-Stage, Direct Coupled, Variable Speed

Rotary Screw Air Compressors

Next gen compact compressors maximize your energy saving, minimize your total cost of own.

General Features

• IE5 efficiency-class IPM electric motors

• Two-stage screw block

• Water cooling (37 kW and above)

• Soft start with variable speed power transmission

• Operating with low noise level

• Integrated dryer (optional)

• Heat recovery (optional)

Screw Block

• Two-stage screw produces energy efficiency by up to 10%

• Higher flow rate by up to 10%.

• Thanks to low compression rate low axial and compression forces

• Zero transmission losses by compact direct power transmission

• No requirement for a power transmission element results in a compact design

• Low axial and compression forces due to low compression ratio between screw blocks

• Thanks to low rotor speeds, a long service life

• Thanks to two-stage compression, low noise and vibration levels

Electric Motor

• Ultra Premium IE5 energy efficiency-class electric motors

• Internal Permanent Magnet Motor (IPM)

• Compact design

• F-class insulation

• Optimum oil cooling at all speeds for high efficiency

• Low noise levels

• Grease-free lubricated motor bearings

Electric Motor Drive

• The drive and IPM meet the requirements of IES2 (EN50598)

• Functionality in a single unit

• Uses fewer components

• Long service life helps minimize environmental impact.

Oil Filter

• Non-metallic, environmentally friendly and recyclable oil filter

• Aluminium housing

• Easy maintenance

• Compact design

Water Separator

• Compact, integrated, and unique design

• Separation performance is %99 even in very hot and humid conditions

• High energy efficiency with minimal pressure loss

Air Filter

• Two-stage filtration (Initial filtration/precision filtration)

• 99.9% efficiency in particle separation down to microns

• Low pressure loss (starting pressure fall<3mbar)

• Easy maintenance

• Long service life

Cooling System

• High cooling efficiency in compact air and oil heat exchangers

• Suitable design for operating up to 45oC

• Radial fan for high cooling efficiency (37 kW and above)

• Low noise level with low speed radial fans

• Cooling fan driver for maximum energy efficiency

Controller

• 7” LED Display

• Group operation of up to 4 compressors

• Possibility to choose Master/Slave compressor

• Fast communication with ModbusTCP

• Ability to connect to customer DCS system via ModbusTCP

• Compact construction with integrated driver and controller

• Weekly scheduler for starting/stopping the machine at 2 different time intervals can be individually set for each day of the week

• Dual PID feature can run simultaneous PID for temperature and pressure

• Pressure PID ensures energy-efficient operation by maintaining the pressure at the desired level

• Temperature PID controls the fan speed to maintain the screw block’s most efficient operating temperature

• All inverter and compressor control data are managed from a single point

• Ability to determine co-aging times of the system with selectable parameters

• Built-in phase sensor

• User-friendly on-screen interface

22-75 kW 7,5-8,5-10 bar 1,03-16 m³/min

TECHNICAL SPECIFICATIONS

Model	Pressure		Capacity*				Motor	Connection		Dimensions (mm)		Weight	Noise
	Pressure		Minimum		Maximum		Motor			Dimensions (mm)		Weight	Noise
	bar	psi	m³/min	cfm	m³/min	cfm	kW/HP		Length	Width	Height	kg	dB (A)
IMPETUS VSD 22	7,5	110	1,03	36	4,35	154	22/30	G 1 1/4"	955	1095	1580	750	72
	8,5	125	1,04	37	4,17	147			955	1095	1580
	10	145	1,03	36	3,76	133			955	1095	1580
IMPETUS VSD 30	7,5	110	1,63	58	6,36	225	30/40	G 1 1/4"	955	1095	1580	875	72
	8,5	125	1,6	57	5,91	209			955	1095	1580
	10	145	1,57	55	5,41	191			955	1095	1580
IMPETUS VSD 37	7,5	110	1,77	63	7,76	274	37/50	G 1 1/2"	1195	1250	1860	1220	71
	8,5	125	1,77	63	7,27	257			1195	1250	1860
	10	145	1,76	62	6,52	230			1195	1250	1860
IMPETUS VSD 45	7,5	110	2,3	81	9,3	329	45/60	G 1 1/2"	1195	1250	1860	1400	72
	8,5	125	2,28	80	8,73	308			1195	1250	1860
	10	145	2,27	80	8,01	283			1195	1250	1860
IMPETUS VSD 55	7,5	110	2,6	92	11,6	410	55/75	G 2"	1400	1450	1965	1620	72
	8,5	125	2,54	90	10,85	383			1400	1450	1965
	10	145	2,53	89	9,54	337			1400	1450	1965
IMPETUS VSD 75	7,5	110	3,51	124	16,01	565	75/100	G 2"	1400	1450	1965	1850	72
	8,5	125	3,63	128	15,27	539			1400	1450	1965
	10	145	3,57	126	13,22	467			1400	1450	1965

- Unit performances measured in reference conditions which are 1 bar absolute air Pressure, %0 relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Dalgakıran reserves its rights to make changes in its products and specifications without prior notice.
* Refers to free air delivery measured according to ISO 1217:2009, Annex E standard.
